Introduction

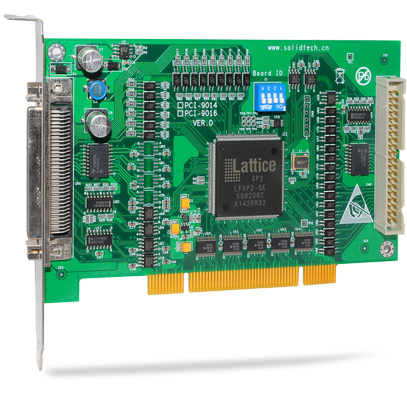

PCI-9014 is a 4-axis PCI bus motion controller Card, suitable for stepper motor and servo motor. FPGA is used for motion planning, which can support some motion modes such as outputting pulse command、point-point motion、continuous motion.

●Supports 32-bit  33MHz PCI bus, and 3.3V、5V PCI bus

●Supports 4-axis stepper motor and servo motor

●Supports PUL/DIR、CW/CCW pulse outputoutput pulse frequency up to 4MHz

●28-bit counter on single axis, count for output pulse command & input encoder pulse

●Supports trapezoidal and S-curve profile

●Provide EL+, EL- and home input for each axis
●16-CH isolated digital inputs and AC inputs
●16-CH isolated digital outputs with open-collector

●Sink current up to 50mA on single isolated output
●Set card number with hardware dial switch
●Support Windows XP/Win7/Vista/Win10

●EMC Compliance:EN 61000-6-42007+A1EN 61000-6-22005
